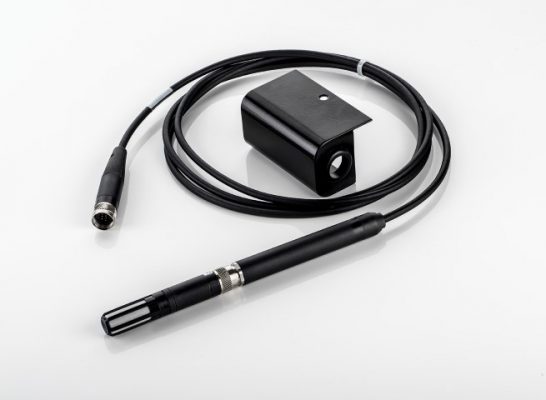

PCS-002803 HFRR湿度和温度探头，包括电缆和支架

零件代码：PCS-002803

可选的湿度和温度组合探头，可连接到HFRR控制单元的背部。对于某些测试程序，必须调整磨损痕迹，以补偿燃料水分含量对结果的影响。探头将在测试开始和结束时自动测量环境温度和湿度，而无需用户手动进行测量。

提供的组件

· HFRR温湿度探头

· 探头连接线

· 探头支架（如果使用HFRR湿度控制柜，则不需要）

如果将仪器与湿度控制柜一起使用，则探头应位于柜左侧的配件中。如果该仪器未与湿度控制柜一起使用，则探头附带有一个支架，可将探头连接到机械单元的侧面。

An optional combined humidity and temperature probe can be connected to the rear of the HFRR control unit. For some test procedures, the wear scar must be adjusted to compensate for the effect of fuel moisture content on the result. The probe will automatically measure the ambient temperature and humidity at the start and end of the test, instead of the user having to take the measurements manually.

Supplied Components

• HFRR Humidity and Temperature probe
• Probe Connecting Cable
• Probe Bracket (not required if using an HFRR Humidity Controlled Cabinet)

If the instrument is being used with a humidity controlled cabinet, the probe should be located in the fitting provided on the left side of the cabinet. If the instrument is not being used with a humidity controlled cabinet, a bracket is supplied with the probe, enabling the probe to be connected to the side of the mechanical unit.
