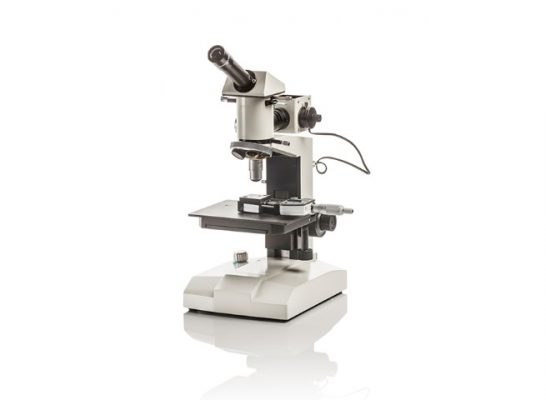

HFRR Metallurgical Microscope

The microscope is a standard metallurgical microscope with a single x10 objective and a single x10 eyepiece lens (x100 magnification). It is fitted with a 1-micron resolution digital micrometer stage with a special adapter to hold the HFR upper specimen holder in two positions to allow easy measurement of the X and Y wear scar dimensions. Various options are also available such as extra objectives for higher magnification, wear scar measurement camera etc.

Spare Parts

If replacements are required, the following items can be purchased separately:

• Microscope stage
• Micrometer
• Microscope stage including micrometer
• Replacement lamp for microscope
